Lýsing
Y-sía með flangs úr steypujáni
APPLICATION
Heating system and undrinkable domestic water,
steam and other compatible fluids.
GENERAL CHARACTERISTICS

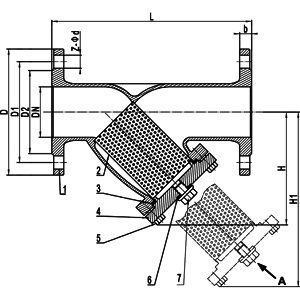

“Y” body and bonnet in cast iron from DN15 to DN300 and in ductile iron for DN350 and DN450.
Dismountable stainless steel screen
Drain plug G1/2 (DN15-100); G3/4 (DN125-400)
Flanged ends PN 16.
WORKING CONDITIONS
Maximum working pressure :16 bar .
Maximum temperature: -15°C / +140°C
Pressure test according to standards
EN 12266-1, DIN 3230, BS 5154 and ISO 5208 :
Body : 24 bar.
